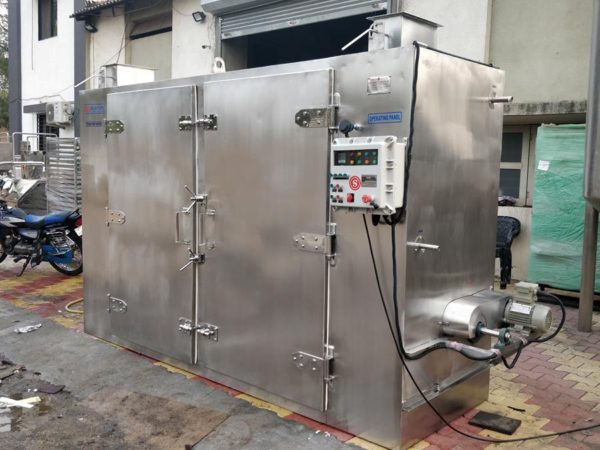

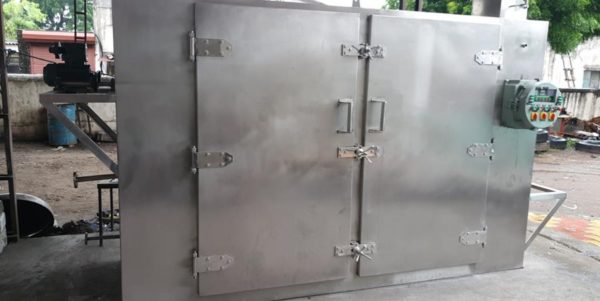

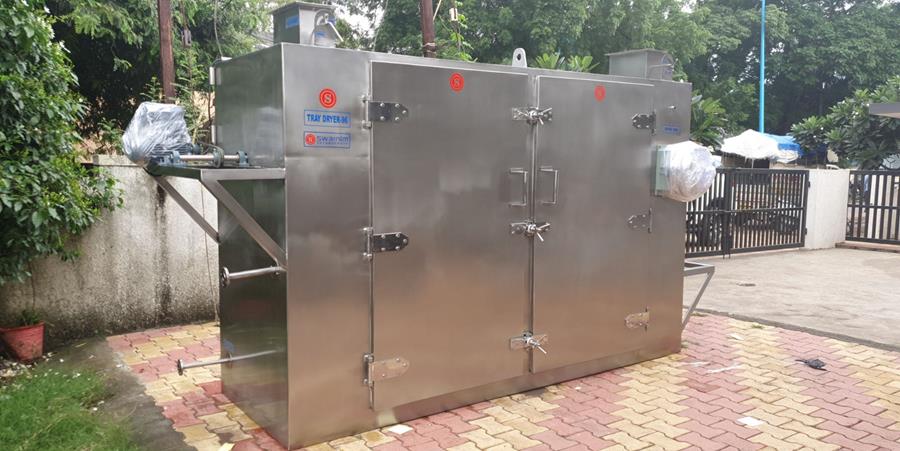

Tray dryer capacity is 6 trays to 192 trays. The tray dryers are heated by means Of electrical, steam. and oil as fired burners. The dryer cabinet is designed in such a way that air inside the dryer has minimum resistance at all the corners of the dryer, All the sides of the dryer from inside are made with rounded corners with maximum angle so as to have more slippage to air, resulting into less pressure drop across the corners. The outer body is also fabricated
with rounded edges without steps from outside to have smooth finish. The inside fan & radiator/heaters are covered with SS / G I mesh to have safety in operation.

Air in the dryer is ci rculated by means of fan fitted on the side of the dryer. The fans are made out of AISI 304 / 316 or MS with SS / MS / ENB shafts driven by suitable motors. Tray sizes Of 32″X 16″ X 11/4″ or 32″ X 16″ X 2″ are manufactured out Of 16/18/19 swg,r AISI 304 / 316 material. All the corners are rounded without any gap. The 18 swg trays are with bidding from the top. while 16-swg trays come without bidding. and are used for all GMP model tray

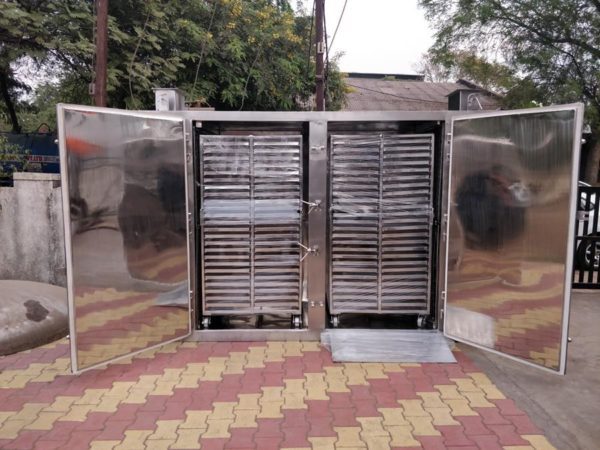

dryers. The trays are polished to mirror finish. The trays With are also supplied for bottle or vial dryers. Tray dryer trolleys are manufactured from heavy gauge rectangular pipes & SS angle with cross pports brackets & SS wheels.
